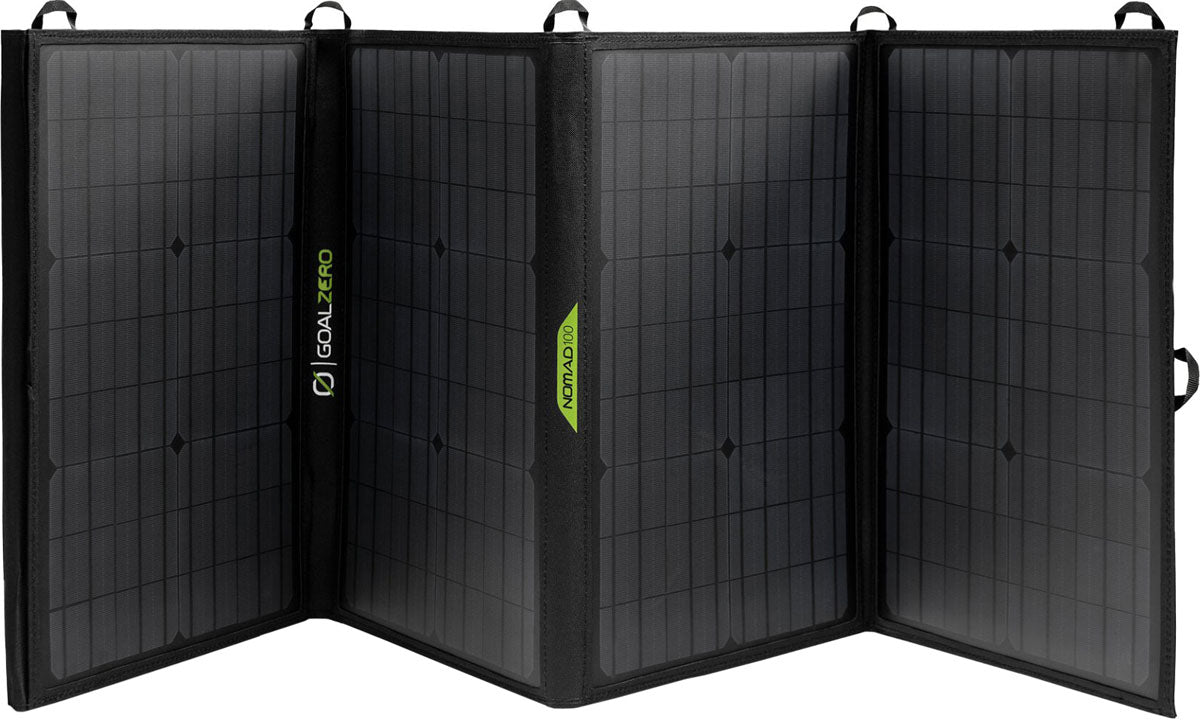

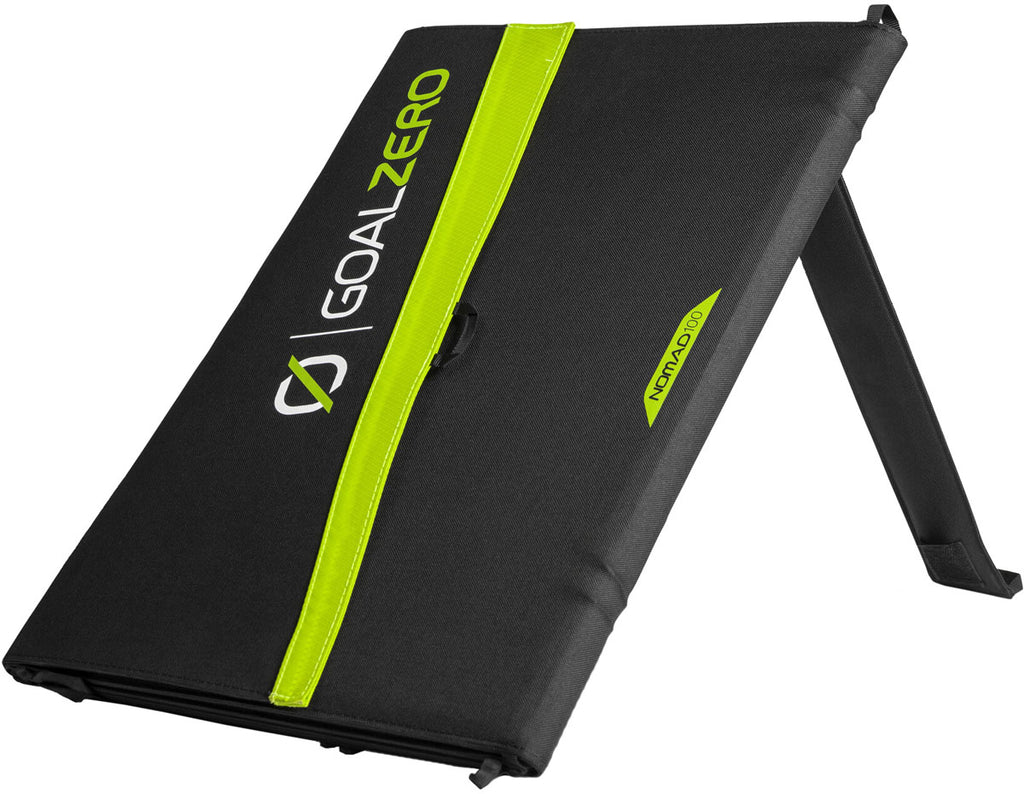

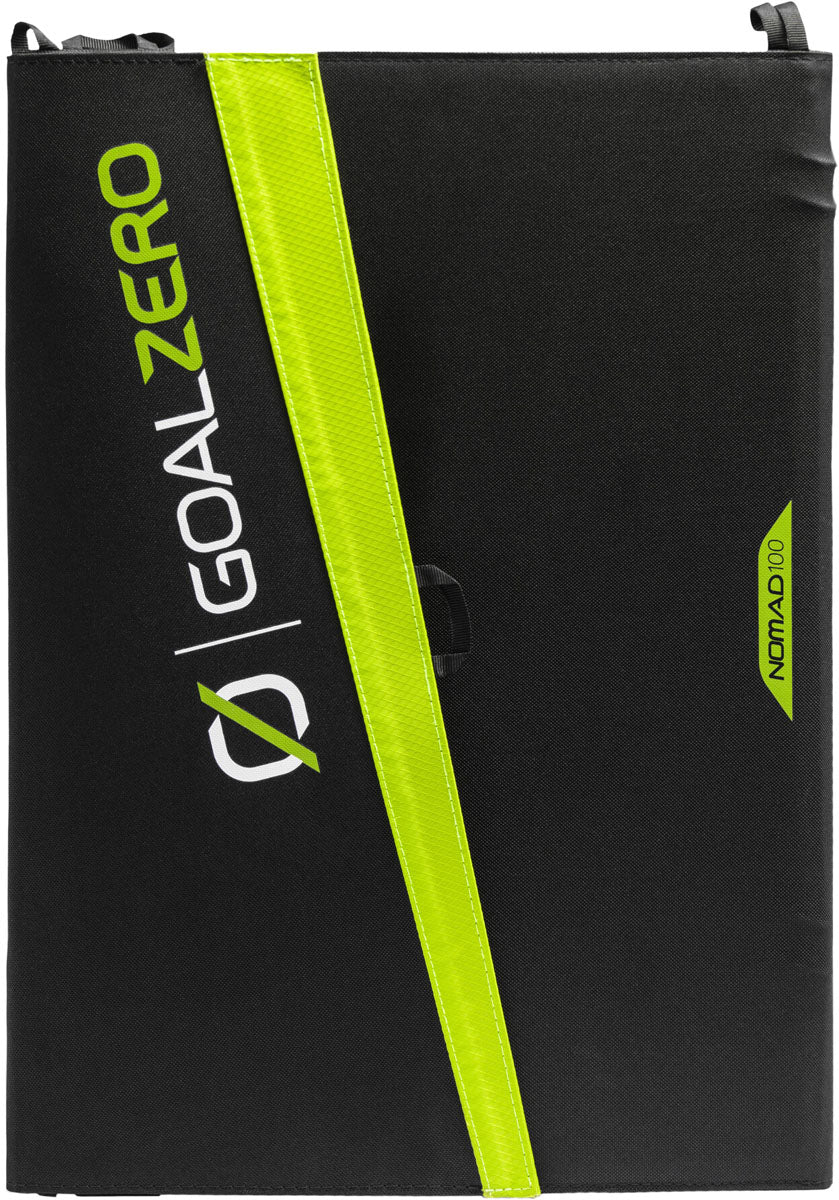

Portable, rugged, and powerful, the 100 W foldable panel is designed for lightweight travel for mobile basecamps and die-hard adventurers. With built-in charging cables for the Sherpa Power Banks and Goal Zero Yeti Portable Power Stations. This panel can be chained with multiple other solar panels to collect more power from the sun for maximum solar input into the Yeti 1000X and larger using the 4x 8 mm combiner to high power port connector.
- The solar panel does not hold a charge, it produces power when it is exposed to sunlight
- Connect it to recharge a portable power station
- The Nomad 100 is best used for recharging Goal Zero Yetis
- Recommended power and Yeti X pairings:
- Sherpa 100 AC: 3-6 hours
- Yeti 200X: 2-4 hours
- Yeti 500X: 6-12 hours
- Yeti 1500X: 18-36 hours
- Yeti 3000X: 36-72 hours
- Solar charge times vary and are dependent on many factors such as elevation, temperature, time of year, angle and position to the sun
- Solar port (blue 8 mm, male): 14 V-22 V, up to 5.56 A (100 max)
- Solar:
- Rated power: 100 W
- Open circuit voltage (Voc) 21.5 V
- Maximum power point voltage (Vmpp): 18.0 V
- Maximum power point current (Imp): 5.56 A
- Short circuit current (Isc): 5.9 A
- Cell type: monocrystalline
- Weight: 4.6 kg (10.2 lb.)
- Dimensions (unfolded): 52 cm x 151.1 cm x 2.54 cm (20.5 in. x 59.5 in. x 1 in.)
- Dimensions (folded): 52 cm x 39.37 cm x 5.08 cm (20.5 in. x 15.5 in. x 2 in.)

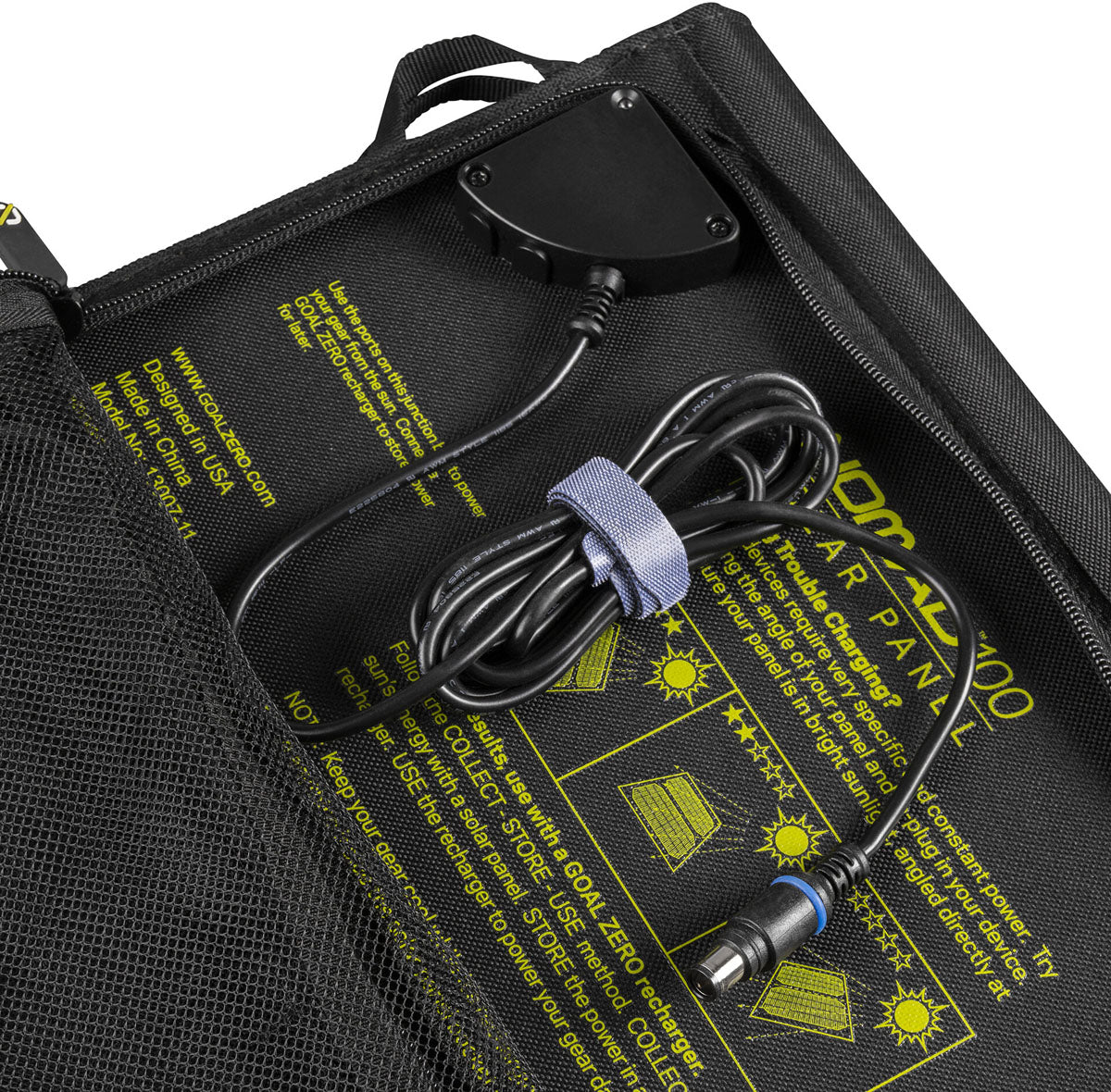

- Cable length: 6 ft.
- Manufacturer warranty: 12 months
